Item Specification

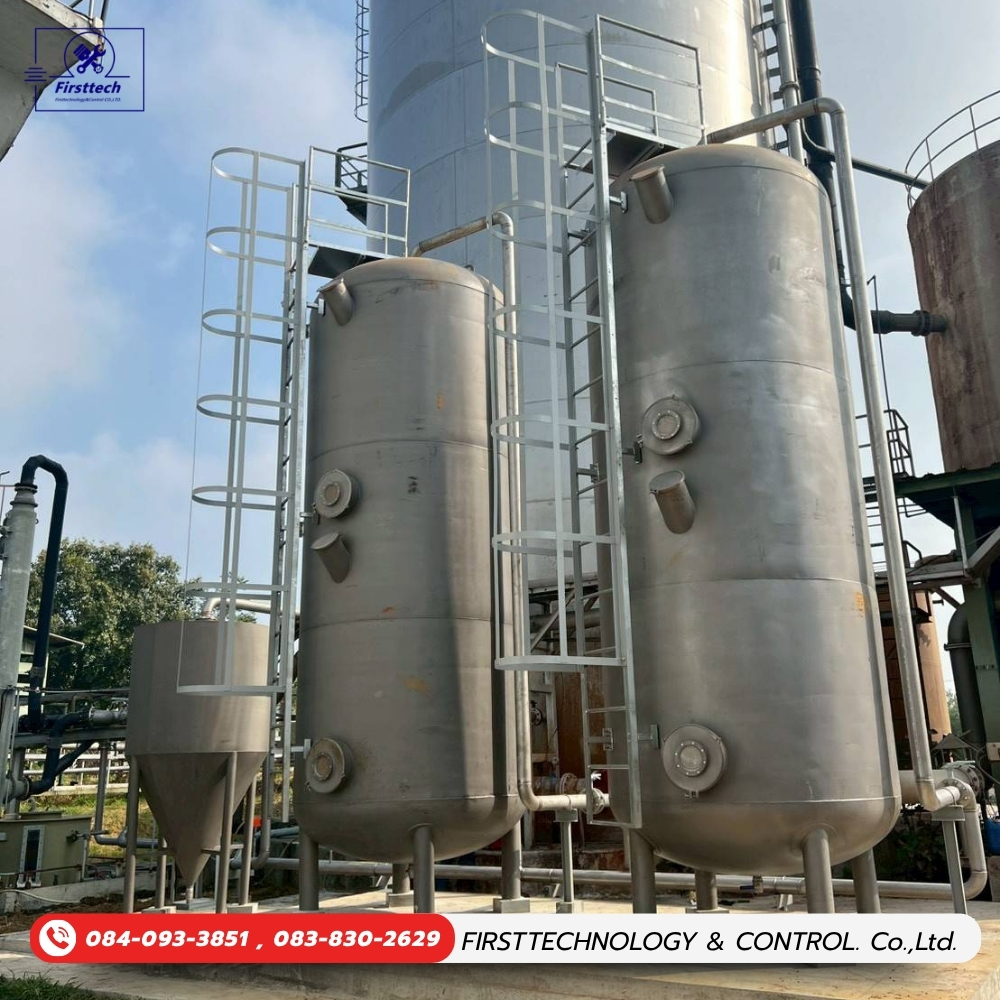

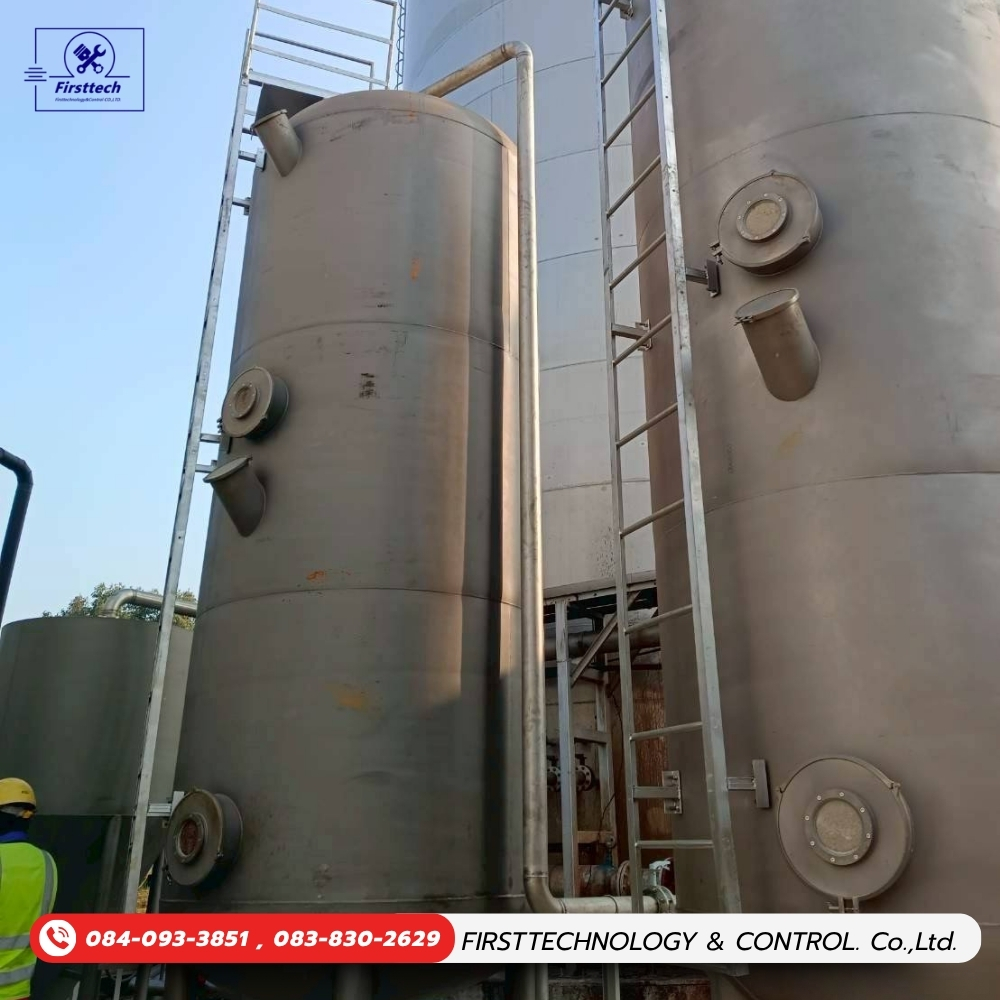

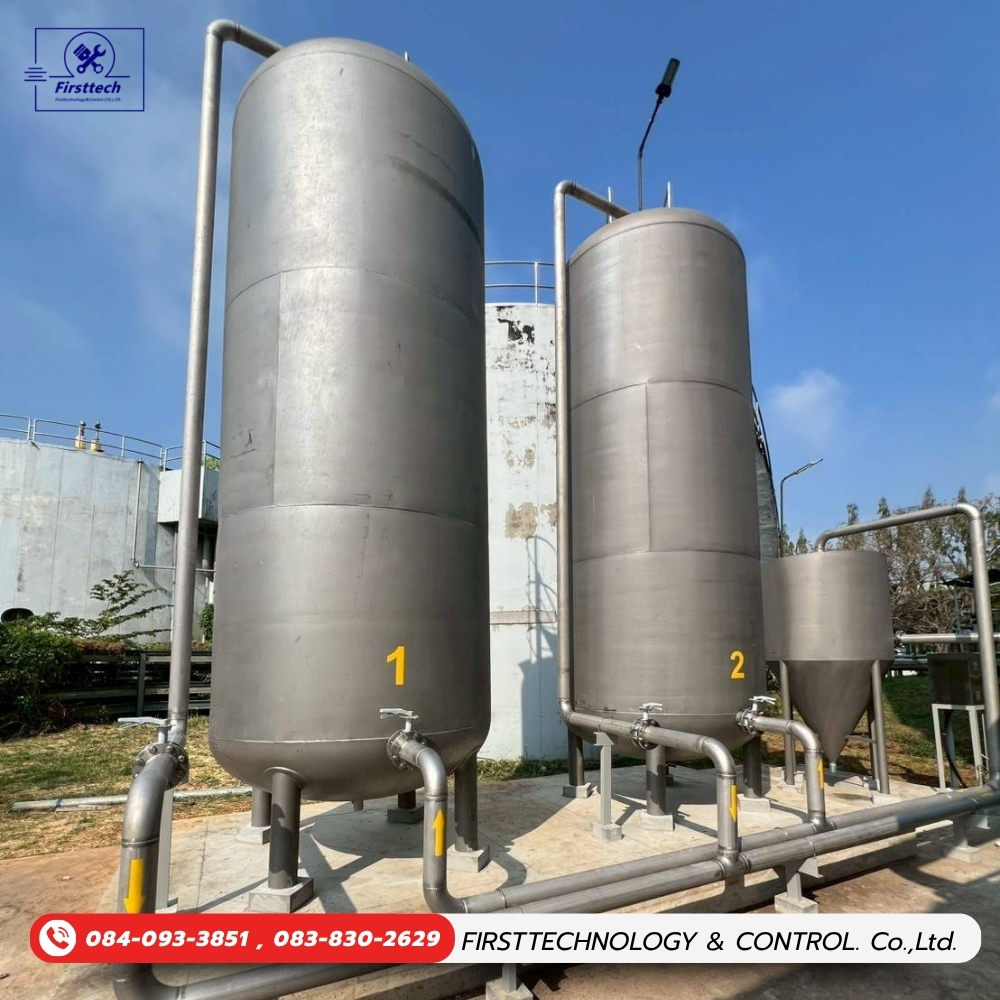

Product Name Desulfurization Tank
Quantity 2 Sets
Application Biogas Desulfurization
Material SS304 (Stainless Steel 304)
Maximum Operating Pressure 600 mbar (0.6 bar / 8.7 PSI)
Tank Diameter (Each Tank) 2,000 mm
Total Height (Stacked Tanks) 5,500 mm
Lower Tank Height 2,750 mm
Upper Tank Height 2,750 mm
Biogas Inlet (Lower Tank) DN100
Biogas Outlet (Upper Tank) DN100
Feeding Port DN200 (1 Port per Tank Section)
Discharge Port DN350 (1 Port per Tank Section)
Drain Outlet (Bottom Tank) DN50
Fe₂O₃ Capacity 10,000 kg per Tank
